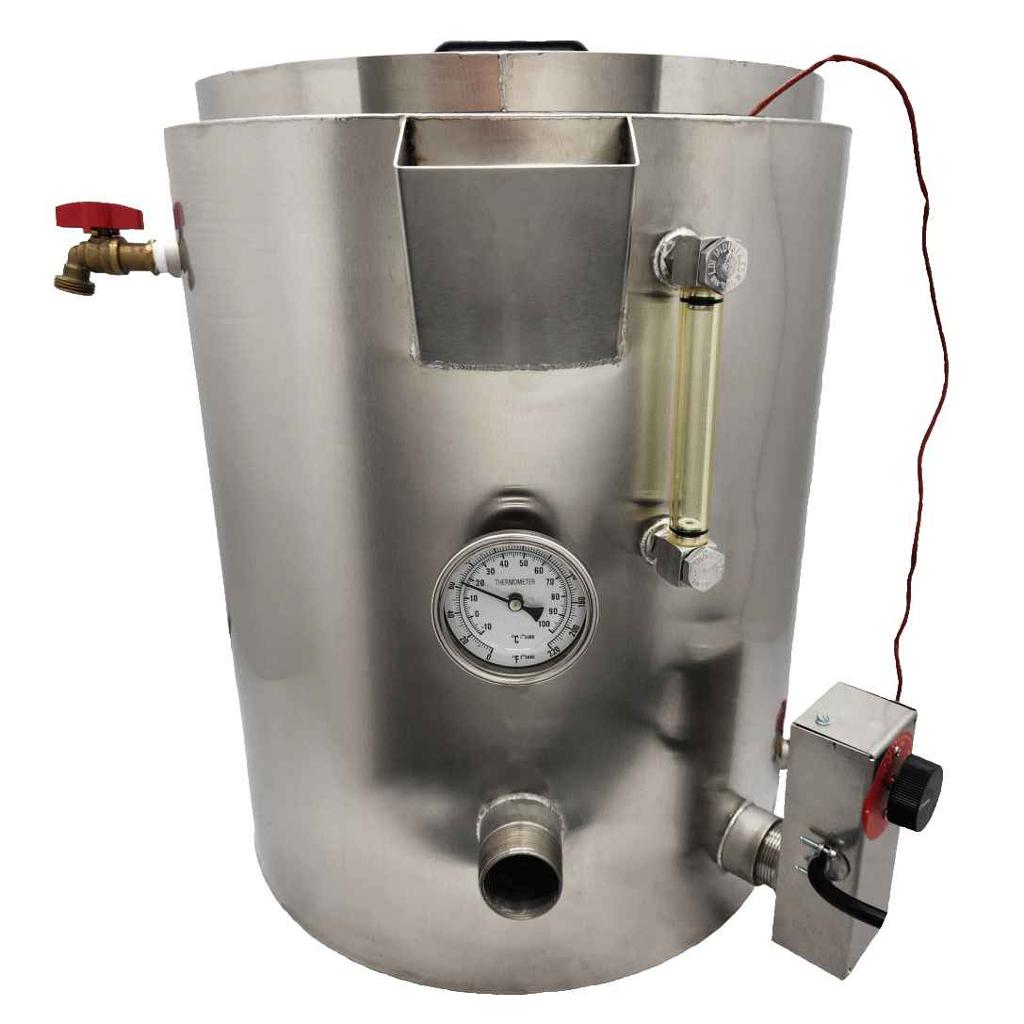

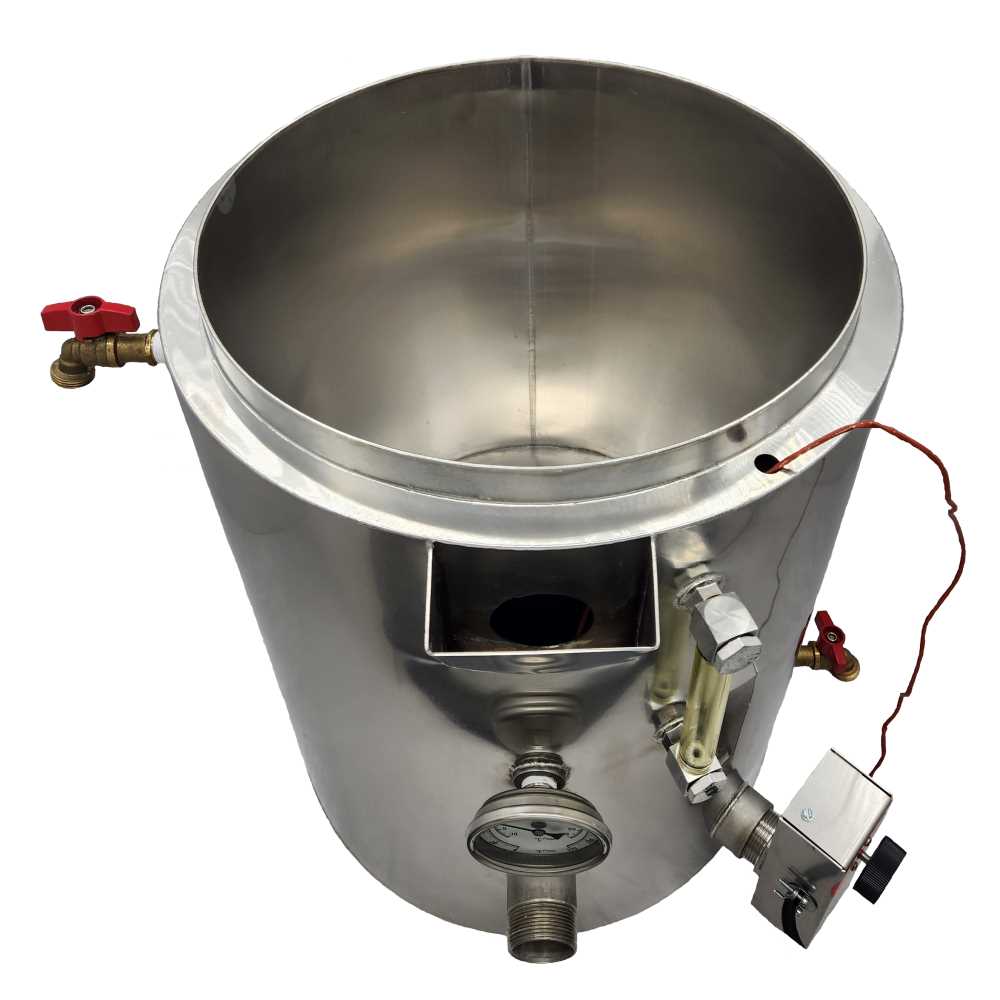

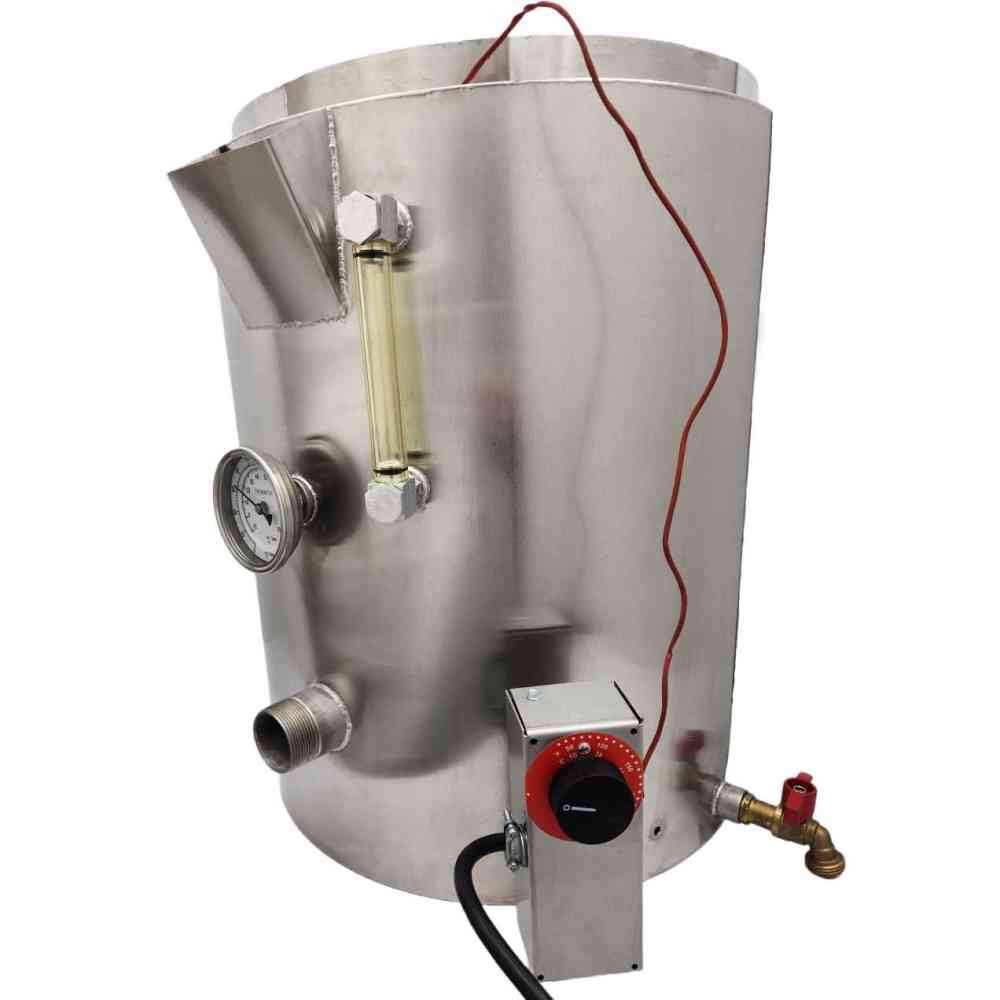

Our 13 Gallon (100 lbs) Wax Melter Tank is perfect for heating oils, soap, candle wax, fats, CBD, and more! Durable stainless steel construction made to last.
Willow Way is proud to offer our customers this heavy duty, wax melting tank. Available in two models: 120V or 220V.
Our 13 Gallon (100 lbs) Wax Melter Tank is designed to give you evenly dispersed heat with more precise temperature control.
A jacketed tank provides a more gentle heating method when compared to direct contact that can scorch or burn your products.
All 304 stainless steel construction, both food and cosmetic grade meeting certified organic production requirements. Quality our customers have come to expect.
The 13 Gallon Wax Melter Tank has an exclusive Sloped Bottom to increase efficiency. There is no need to tilt your tank or stand to drain the last drops of wax out.Super easy to clean!
304 Stainless Steel is used in the construction of both inner and outer tanks, tank lid and all fittings.
Food and Cosmetic Grade. Meets requirements for organic certification.
Capacity: Approximately 13 gal. (49L), 100 lbs (45.359Kg) in weight.
Tank Jacket Volume: Approximately 8.15 gal (30.71L)
Exterior dimensions: 21” (53cm) high x 18” (46cm) in diameter.
Interior dimensions: Approximately 15" x 16"
Large 1 ½” (38mm), Three-Way Ball Valve outlet with 90 degree elbow.
Outer jacket tank is Water boiler style with flat bottom.
½” (13mm) Inlet and Outlet
Model 13MH: Heater 120 Volt, 1500 watt, Thermostat: (50F to 250F) (10C to 121C). Current draw: 12.5 amps @ 120 volts.
Model 13MH220: Heater 220 volt, 3000 watt, Thermostat: (50F to 250F) (10C to 121C).
Note: International and Domestic customers requiring 220 volt 50/60 cycle:
A simple change out on the Plug may be needed to meet electrical codes specific to your country.
Wattage will be approximately 17% less than the wattages shown in Countries with 50 Hz electrical power.
UL approved components.
Can ship via UPS. Weighs 45 lbs (20Kg), Oversize @ 70 lbs (32Kg).
Protective Crating is included in the price.
Lid, Heating Element, Thermostat w/Cord, and 3 way Ball Valve.
Lid comes with a molded high-temp handle that stays cool to the touch.
Extra Heating Element. Chances are unlikely you will ever need it, but its always great to have a spare to avoid down time.
Three-Way Ball Valve is large 1 ½” (38mm). Makes dispensing thicker items easy.
See our optional Reducer for our 1.5 inch Ball Valve when dispensing into molds or containers with small openings.
Tip: When working with candle wax that can block flow should it set up hard in your ball valve, our optional Heated Valve Assembly makes it simple to restore flow. Just turn it on and the blockage melts.
Ball Valve has Adjustable tension.
Dispenses at a 90° angle for a minimal number of fittings required. It makes it easier to clean.
½” (13mm) Inlet and Outlet for filling and draining the tank jacket.
Cleaning Brush for Outlet & Valve Cleaning
Pipe Seal included. English written Operating Instructions are easy to follow.
Lid, Heating Element, Thermostat w/Cord, and 3 way Ball Valve.
Lid comes with a molded high-temp handle that stays cool to the touch.
Extra Heating Element. Chances are unlikely you will ever need it, but its always great to have a spare to avoid down time.
Three-Way Ball Valve is large 1 ½” (38mm). Makes dispensing thicker items easy.
See our optional Reducer for our 1.5 inch Ball Valve when dispensing into molds or containers with small openings.
Tip: When working with candle wax that can block flow should it set up hard in your ball valve, our optional Heated Valve Assembly makes it simple to restore flow. Just turn it on and the blockage melts.
Ball Valve has Adjustable tension.
Dispenses at a 90° angle for a minimal number of fittings required. It makes it easier to clean.
½” (13mm) Inlet and Outlet for filling and draining the tank jacket.
Cleaning Brush for Outlet & Valve Cleaning
Pipe Seal included.
English written Operating Instructions are easy to follow.
We also include instructions and formula for making Liquid Soap.
You can fill the Tank jacket with Water, Mineral Oil or Propylene Glycol (PPG).
PPG and Mineral oil heat slower than water and has better heat retention. Evaporation is also less of an issue.
It also allows for higher temperatures and less maintenance is required.
NOTE: Always make sure to use food grade quality PPG with inhibitor.
The Inlet and Outlet Fittings make flushing heated water from the tank jacket easy.
The standard drain plug can be replaced with our optional “Faucet for Water Jacket”. This you to connect a standard garden hose making drainage mess free. It also gives you more control of the flow with just the turn of a handle.
The wax melter tank is very easy to setup, use, maintain and clean. There is rarely a need to use tools during your tank installation (less than 5% of the time). This Gets you going FAST!!
Our customers report increased Production levels when using our tanks. When you save on labor, money and time = More Profit for you!
By using a jacketed tank to heat your waxes, it gives you peace of mind knowing the quality and integrity is maintained with controlled temperature regulation and even heating.
Constructed with Food and Cosmetic Grade 304 Stainless Steel that is approved for Certified Organic production.
This stainless steel wax melting tank can attach directly to our EZ Fill Bottler for an easy way to turn your unit into a Bottling Tank. Dispense directly into your bottles, jars or molds for soaps, candles, and candy.
Built to last! The quality construction and design ensures your tank will last for many years under daily use.
Useful for many industries. Heat, or Melt anything that requires even controlled heat without the risk of hot spots burning your product. With your imagination the options are endless with such a versatile jacketed tank.
Turn your unit into a Mixing Tank with our Slow Speed Mixer unit. Its perfect for blending in colors, flavors, fragrances, essential oils, or other additives. ...and it Keeps it mixed as you dispense.
Our Stainless Steel Work Table makes an easy to clean work space.
